Tallguide ® TG40
Ultra Low Loss Waveguide
Frequency 26 to 40 Ghz

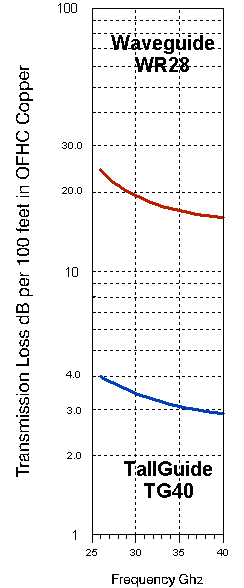

Tallguide TG40 Replaces WR28 Waveguide

	Transition 181-1087-x WR28 to TG40
		Loss = 0.07 dB L = 10.0 inches -1 WR28 Flat Cover Flange. -2 Gasket Grooved Flange.
	Mode Suppressor 181-1089
		Loss = 0.12 dB L =10.0 inches
	90-Degree Twist 181-1093
		Loss = 0.02 dB L = 11.0 inches
	90-Degree H-Plane Bend 181-1091
		Loss = 0.02 dB L = 5.00 inches Other Bend Angles 181-1091-045 Degree
	Straight Section 181-0913-xxx
		Loss = Length Loss dB + 0.01 dB per flange L = (For total loss, L is multiple section length. When ordering parts, xxx is each section length in units of inches. Max. section length is 144 inch.)
