Tallguide ® TG31
Ultra Low Loss Waveguide
Frequency 33 to 55 Ghz

Tallguide TG31 Replaces WR22

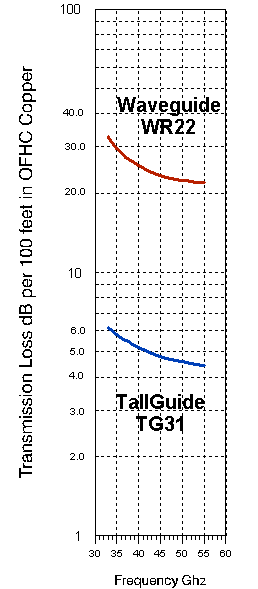

MILSTAR EHF Uplink Band Alternative

	Transition 181-1374-x WR22 to TG31
		Loss = 0.15 dB L = 7.0 inches -1 WR22 Flat Cover Flange. -2 Gasket Grooved Flange.
	Mode Suppressor 181-1375
		Loss = 0.17 dB L =7.0 inches
	90-Degree Twist 181-1376
		Loss = 0.05 dB L = 8.0 inches
	90-Degree H-Plane Bend 181-1377
		Loss = 0.05 dB L = 3.0 inches
	Straight Section 181-1378-xxx
		Loss = Length Loss dB + 0.01 dB per flange L = (For total loss, L is multiple section length. When ordering parts, xxx is each section length in units of inches. Max. section length is 144 inch.)
